Block electronics

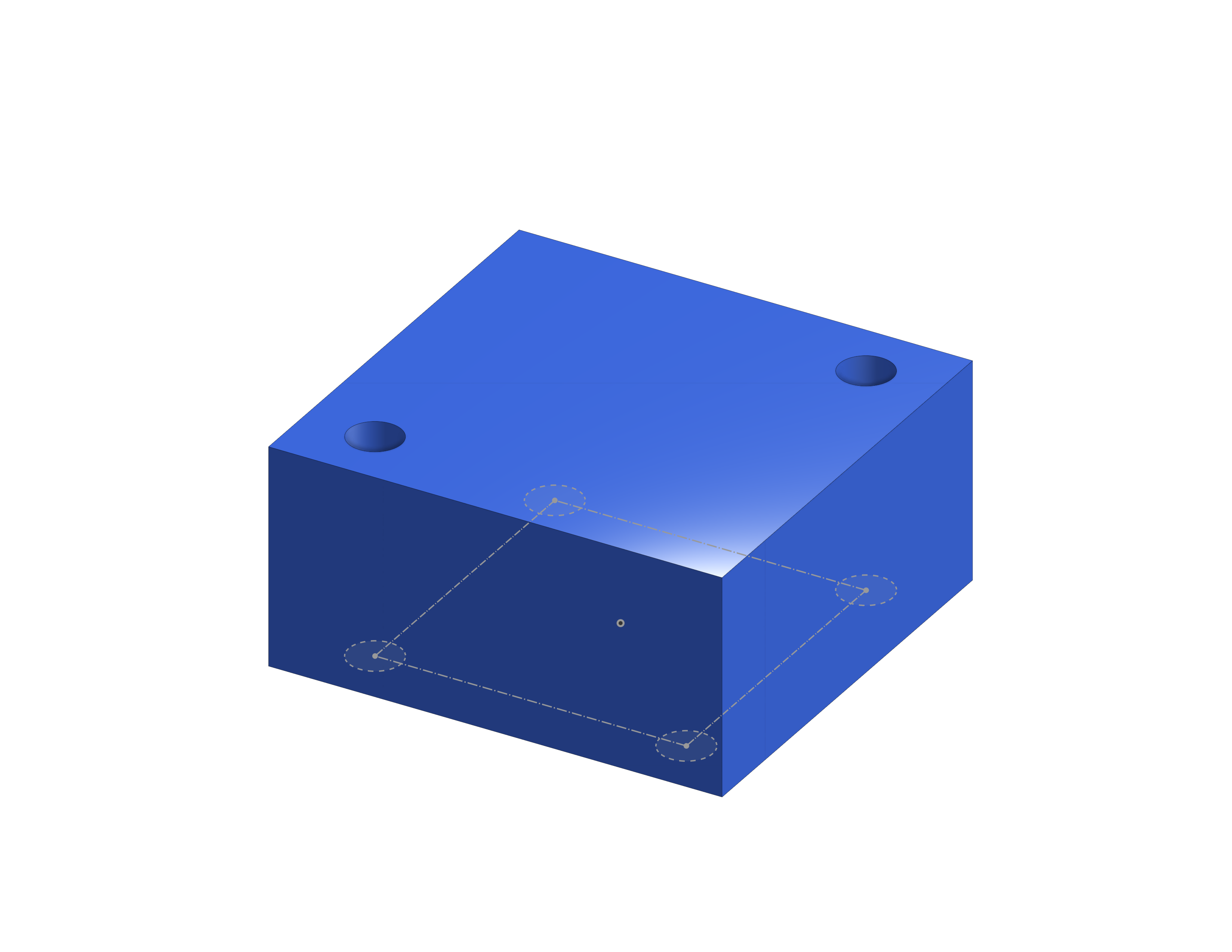

A generic block representation for electronics components, made for the same reason as the MK4n block above - block CAD was just starting to become popular at the time, and this was meant to reduce time spent doing full-detail CAD for electronics placement on a robot. It was added to FRCDesignLib a day after it was created. Getting it to work fully took a lot of messing with Onshape configurations. Block electronics CAD, Onshape.
Gallery
1 / 15
